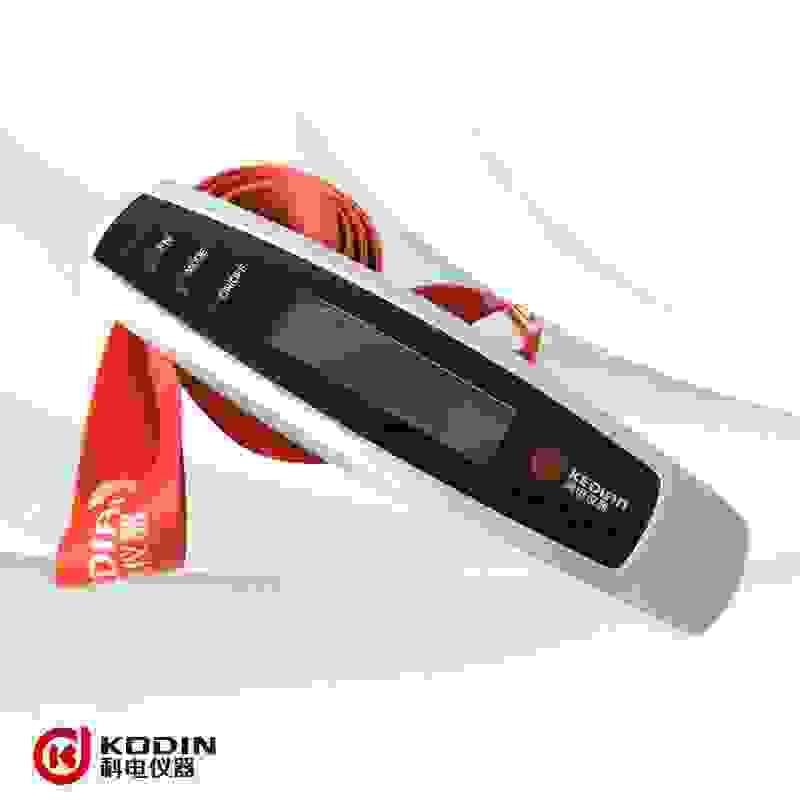

• Ray Detector RAY-3000A

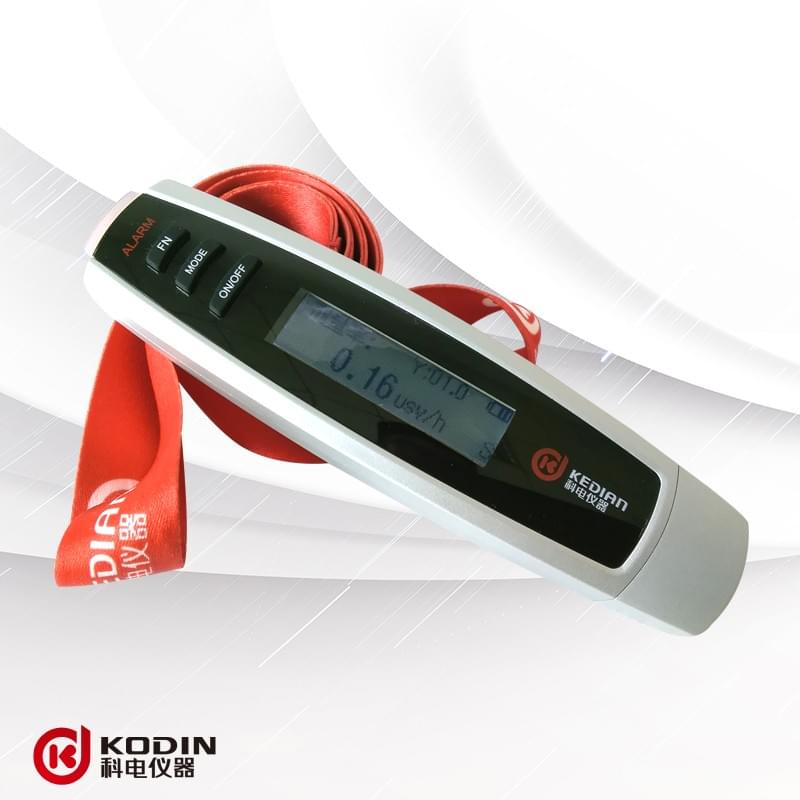

    Section image



    RAY-3000A ray detector is a kind of small intelligent radiation monitoring instrument.It been used for χ-ray and γ-ray detection. RAY-3000A is lower power, high sensitivity, stable performance, easy operation and small size. It can be put in the pocket. RAY-3000A use new single chip microcomputer technology to against interference, it can work in harsh environment.



    RAY-3000A ray detector, can precisely detect the radiation dose rate and cumulative dose. LCD will display the reading to make sure operator stay in a safe environment which radiation dose rate remains at a reasonable level. When radiation dose rate over the alarm threshold, detector will display a prompt symbol, and alarm operator with sound and noise.



    RAY-3000A is been used on Nondestructive inspection, nuclear power plant, nuclear-powered submarine, isotope application, hospital cobalt therapy and so on.



  • Technique parameter

    1 Compensated GM counter tube.

    2 Available detect ray: χ, γ

    3 High sensitive.

    4 Digital display, easy to read.

    5 Measuring range :

    Radiation dose rate : 0.01usv/h～99.99msv/h;

    Cumulative dose : 0.01usv～999.99msv;

    6 Deviation:<±10%(137Cs)

    7 Alarm

    Alarm threshold option : 0.5,1.0,2.5,10,30,50μSv/h.

    Alarm type : Normal(N), Continuous(C), Silence(S).

    When radiation dose rate over 1msv/h, detector will switch to Continuous(C) alarm.

    8 Data retention

    Cumulative dose data can be saved in detector if power is gone.

    9 Working environment : -10 -- +50ºC. Humidity : Less than 90%.

    10 Size:145×37×22mm

    11 Weight : 120g( with battery )

    12 Power : CR2450, 3V button cell.
