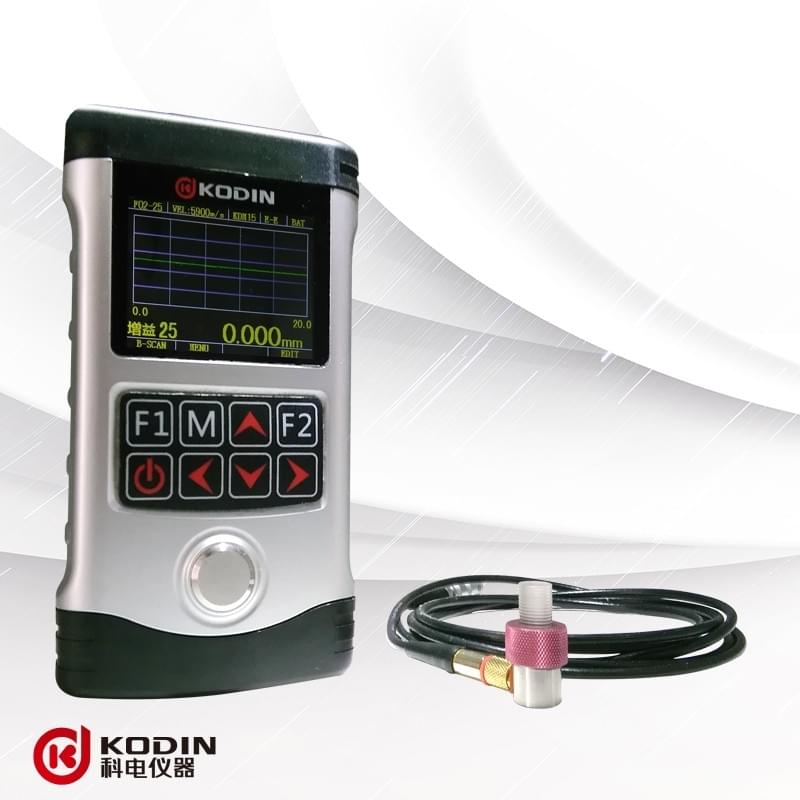

• KODIN®3000HM Single crystal ultrasonic thickness gauge



    Feature

    KODIN®3000HM is a high-precision intelligent ultrasonic thickness gauge. It uses a brand-new high-speed data acquisition technology, integrating A-scan, B-scan, numerical mode, and USB communication functions. The instrument is easy to operate. The 2.4-inch high-definition TFT color screen makes the measurement interface clearer, and the USB communication makes data transmission more convenient.



    Application

    It is suitable for the thickness measurement of thin-walled materials such as automobile body steel plates, fire/security doors, copper doors/panels, fire extinguishers, office roll cabinets, metal staircase handrails, cooking appliances, etc.



  • Technical Parameters

    1. Measuring range

    Pulse-echo : 1.2mm-26mm

    Echo-Echo : 0.2mm-13mm

    Multiple wave inspection : 0.2mm-9mm

    Automatic mode : 0.2mm-26mm

    2. Measurement resolution : 0.001 or 0.01 or 0.1

    3. Range of material sound velocity : 1000-9999m/s

    4. Measurement update frequency : 4Hz, 8Hz, 16Hz persecond (optional)

    5. Temperature : -10℃ -60℃ ; relative humidity is less than 90%

    6. Size : 146mm*81mm*30mm

    7. Weight : 300g (including battery)

    8. Unit : mm or inch

    9. Power supply : two AA batteries

    10. Display screen : 2.4TFT color display (320x240)

    11. Display mode:

    A-SCAN: Display the echo waveform of the measured object

    B-SCAN: Display the profile view of the measured object

    Normal mode: digital display of thickness value

    Difference mode: display the difference between the actual thickness and the preset thickness and the thinning percentage Maximum value capture: display the

    current thickness value, minimum thickness value and maximum thick ness value at the same time

    12. Gain: real-time adjustable

    13. languages: Chinese, English

    14. shutdown: optional 5, 10, 20 minutes of no operation after automatic shutdown, or only manual shutdown

    15. probe: single crystal delayed single head (15MHz)

    16. Alarm setting: the measured value is greater than the upper and lower limits, change the color of the displayed thickness value and the color of the waveform to

    show the alarm
